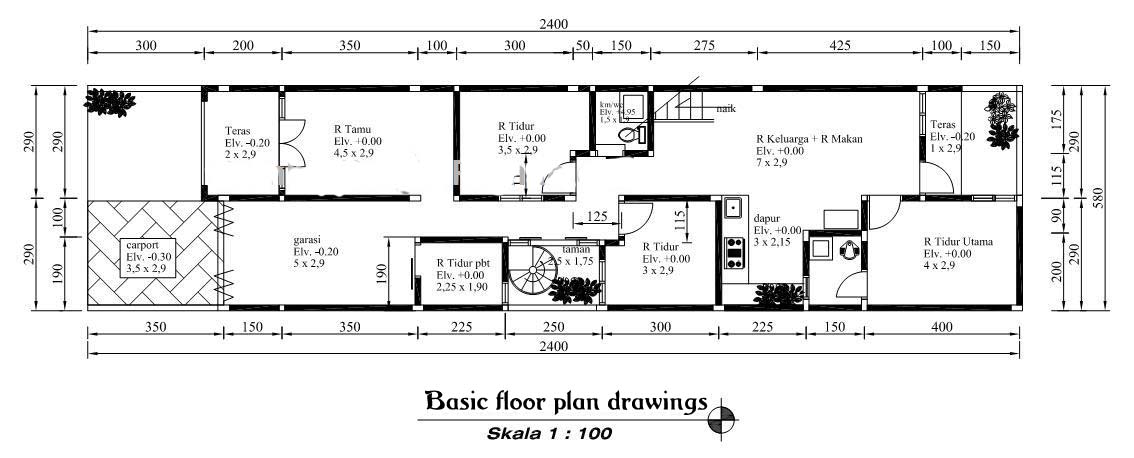

Basic floor plan drawings
Top floor plan drawingsImages consist of:
- Basic floor plan drawings
- Top floor plan drawings
- Picture looks ahead
- Images appear to the right
- Images appear to the left
- Picture looks back
- Perspective drawings
- Foundation drawings
- Figure pieces lengthwise
- Cross-section images
- Drawings floor beams
- Pelate foot drawings, columns and Sloof
- Figure structural reinforcement plate floor
- Figure structural reinforcement columns, beams and Sloof
- Figure structural reinforcement of practical columns, beams Sloof practical, practical ring beam
- Fig foot structure reinforcement plate
- The ground floor layout drawings sanitation
- Sanitation drawings upstairs
- Figure ground floor plan of the roof truss
- Roof truss drawings upstairs
- Figure plan ground floor doors and windows
- Drawings upstairs window and door
- Figure plan ground floor lamp point
- Figure plan upstairs light point
- Figure etail doors and windows
- Budget Plan (RAB)
- All were drawn using AutoCAD on scales?
- Total Building Area = 175 m2
- Dimensions 5.8 m x 21 m
- Consists of the Garage Building, 5 KT, KT Maid 1, 4 KM, 1 R Guest, Kitchen, Meals R, 2 R Family, Terrace, R clothesline, R iron, Ornamental Pond Park
